GATE 2026 IN Q.64: solution and answer

GATE 2026 · INQ.64 · 2 marks · NAT

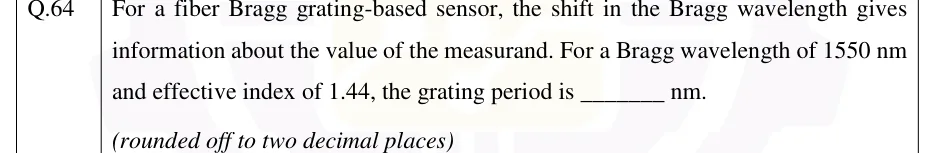

For a fiber Bragg grating-based sensor, the shift in the Bragg wavelength gives information about the value of the measurand. For a Bragg wavelength of 1550 nm and effective index of 1.44, the grating period is _______ nm. (rounded off to two decimal places)

See the question in the paper

Tap to open full size

Answer and solution

ANSWER

The grating period is about 538.19 nm.

Official answer: 537.00 to 539.00Source: Official answer key, GATE 2026 IN (IIT Guwahati)

For a first-order fibre Bragg grating, the Bragg condition is $λ_{B} = 2 n_{eff} Λ$ .
Rearrange for the grating period: $Λ = \frac{λ _{B}}{2 n _{eff}}$ .
Substitute $λ_{B} = 1550 nm$ and $n_{eff} = 1.44$ : $Λ = \frac{1550}{2 \times 1.44} = \frac{1550}{2.88}$ .
Divide: $Λ \approx 538.19 nm$ .

KEY IDEA

A fibre Bragg grating reflects the wavelength that satisfies $λ_{B} = 2 n_{eff} Λ$ (first order). Given the Bragg wavelength and effective index, the period is $λ_{B} / (2 n_{eff})$ .

WATCH OUT FOR

Leaving out the factor 2 and using $Λ = λ_{B} / n_{eff}$ , which gives about 1076.39 nm, twice the correct value.
