GATE 2026 EE Q.58: solution and answer

GATE 2026 · EEQ.58 · 2 marks · NAT

A system with two generators G1 and G2 (without generator limits) is shown. The total load on the system is 1184 MW. The expressions for the cost of generation (C_1 and C_2) and real power loss (P_Loss) are as follows: C_1(P_G1) = 1000 + 50 P_G1 + 0.01 (P_G1)^2 Rs/MWh; C_2(P_G2) = 2000 + 50 P_G2 + 0.001 (P_G2)^2 Rs/MWh; P_Loss = 0.001 (P_G2 - 50)^2 MW. When the generators are operating at their optimal generation, meeting the total load requirement, the real power loss in the system is ________ MW (Round off to one decimal place). Consider the Lagrange multiplier lambda = 70.25 for optimal generation.

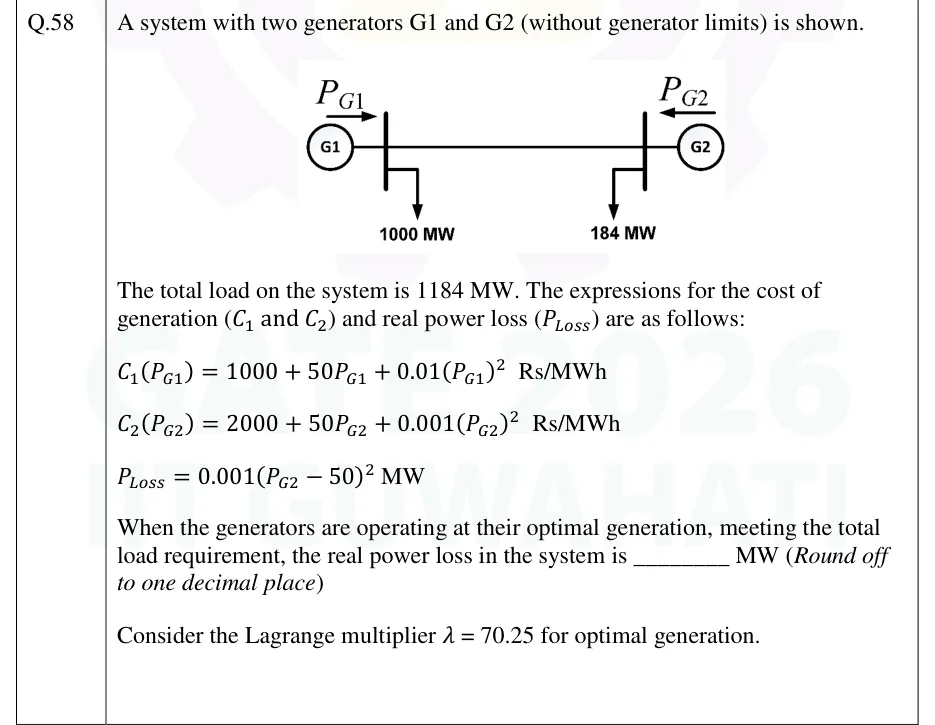

GATE 2026 EE question 58: Single-line diagram: generator G1 on the left feeds a bus with power P_G1 flowing in (arrow to the right) and a load of… — Figure from the GATE 2026 EE paper. It is part of the question.

Answer and solution

ANSWER

The real power loss at optimal generation is about 20.0 MW.

Official answer: marks to all candidatesSource: Official answer key, GATE 2026 EE (IIT Guwahati)

Set up the Lagrangian with losses: $L = C_{1} + C_{2} + λ (P_{D} + P_{L oss} - P_{G 1} - P_{G 2})$ with $P_{D} = 1184 MW$ . The loss depends only on $P_{G 2}$ , so $\partial P_{L oss} / \partial P_{G 1} = 0$ and the condition for G1 is simply $\frac{d C _{1}}{d P _{G 1}} = λ$ .
$50 + 0.02 P_{G 1} = 70.25 \Rightarrow P_{G 1} = \frac{20.25}{0.02} = 1012.5 MW$ .
Power balance (generation = load + loss): $P_{G 1} + P_{G 2} = 1184 + 0.001 (P_{G 2} - 50)^{2}$ , so $P_{G 2} = 171.5 + 0.001 (P_{G 2} - 50)^{2}$ .
Expand: $0.001 (P_{G 2}^{2} - 100 P_{G 2} + 2500) = 0.001 P_{G 2}^{2} - 0.1 P_{G 2} + 2.5$ , giving $0.001 P_{G 2}^{2} - 1.1 P_{G 2} + 174 = 0 \Rightarrow P_{G 2}^{2} - 1100 P_{G 2} + 174000 = 0$ .
$P_{G 2} = \frac{1100 - 110 0 ^{2} - 4 ( 174000 )}{2} = \frac{1100 - 514000}{2} = \frac{1100 - 716.94}{2} \approx 191.53 MW$ . The other root, about $908.5 MW$ , would mean a loss of about $737 MW$ and makes $1 - \partial P_{L oss} / \partial P_{G 2}$ negative, so it is not a valid operating point.
Loss: $P_{L oss} = 0.001 (191.53 - 50)^{2} = 0.001 (141.53)^{2} \approx 20.03 MW$ .
Check with G2's coordination equation: $\frac{d C _{2} / d P _{G 2}}{1 - \partial P _{L oss} / \partial P _{G 2}} = \frac{50 + 0.002 ( 191.53 )}{1 - 0.002 ( 141.53 )} = \frac{50.38}{0.717} \approx 70.3 \approx λ$ , consistent. (Solving G2's equation on its own, $50 + 0.002 P_{G 2} = 70.25 [1 - 0.002 (P_{G 2} - 50)]$ gives $P_{G 2} \approx 191.4 MW$ and $P_{L oss} \approx 19.99 MW$ , so either route rounds to $20.0 MW$ .)

KEY IDEA

With losses, each generator's incremental cost equals $λ (1 - \partial P_{L oss} / \partial P_{G i})$ . G1 does not appear in the loss formula, so $d C_{1} / d P_{G 1} = λ$ gives $P_{G 1}$ directly. The power balance including the loss then fixes $P_{G 2}$ , and with it the loss.

WATCH OUT FOR

Leaving the loss out of the power balance (taking $P_{G 2} = 1184 - 1012.5 = 171.5$ MW gives a loss of 14.8 MW), or applying $d C_{2} / d P_{G 2} = λ$ to G2 without the penalty factor. Another mistake is keeping the larger root of the quadratic (about 908 MW), which is not physical.
