GATE 2025 EE Q.64: solution and answer

GATE 2025 · EEQ.64 · 2 marks · NAT

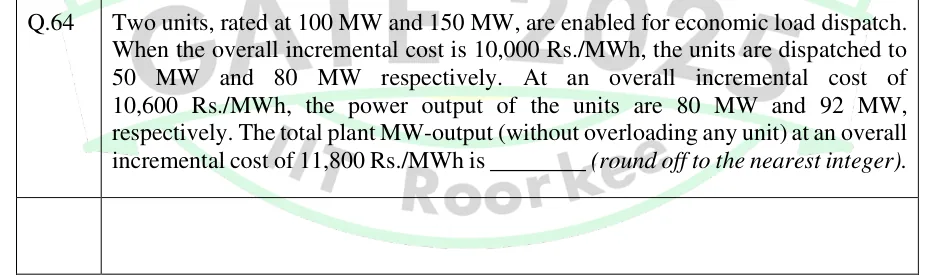

Two units, rated at 100 MW and 150 MW, are enabled for economic load dispatch. When the overall incremental cost is 10,000 Rs./MWh, the units are dispatched to 50 MW and 80 MW respectively. At an overall incremental cost of 10,600 Rs./MWh, the power output of the units are 80 MW and 92 MW, respectively. The total plant MW-output (without overloading any unit) at an overall incremental cost of 11,800 Rs./MWh is ________ (round off to the nearest integer).

See the question in the paper

Tap to open full size

Answer and solution

ANSWER

The total plant output at an incremental cost of 11,800 Rs./MWh is 216 MW.

Official answer: 216Source: Official answer key, GATE 2025 EE (IIT Roorkee)

Each unit has a linear incremental cost curve, so its output varies linearly with the system incremental cost $λ$ (while it is within its limits): $P_{i} = P_{i}^{0} + k_{i} (λ - λ_{0})$ , with $λ_{0} = 10000$ and $P_{i}^{0}$ the output at that $λ_{0}$ .
Unit 1 slope from the two given operating points: $k_{1} = \frac{80 - 50}{10600 - 10000} = 0.05 MW per Rs./MWh$ .
Unit 2 slope: $k_{2} = \frac{92 - 80}{10600 - 10000} = 0.02 MW per Rs./MWh$ .
At $λ = 11800$ the increase over the first point is $11800 - 10000 = 1800$ .
Unit 1, unconstrained: $P_{1} = 50 + 0.05 \times 1800 = 140 MW$ . This exceeds its 100 MW rating, and the question says no unit may be overloaded, so $P_{1} = 100 MW$ .
Unit 2: $P_{2} = 80 + 0.02 \times 1800 = 116 MW$ , which is within its 150 MW rating, so it stays as calculated.
Total plant output: $P = 100 + 116 = 216 MW$ .

KEY IDEA

With linear incremental cost curves, each unit's output is a linear function of the common $λ$ . Find each slope from the two given points, extrapolate to the new $λ$ , then clamp any unit that passes its rating at that rating.

WATCH OUT FOR

Adding the unclamped outputs, $140 + 116 = 256$ MW, and so overloading the 100 MW unit. A unit that reaches its limit stays at the limit.
