GATE 2020 IN Q.45: solution and answer

GATE 2020 · INQ.45 · 2 marks · NAT

A metallic strain gauge of resistance $R_{x}$ with a gauge factor of 2 is bonded to a structure made of a metal with modulus of elasticity of 200 GN/m $^{2}$ . The value of $R_{x}$ is 1 k $Ω$ when no stress is applied. $R_{x}$ is a part of a quarter bridge with three identical fixed resistors of 1 k $Ω$ each. The bridge is excited from a DC voltage of 4 V. The structure is subjected to a stress of 100 MN/m $^{2}$ . Magnitude of the output of the bridge (in mV, rounded off to two decimal places) is ____

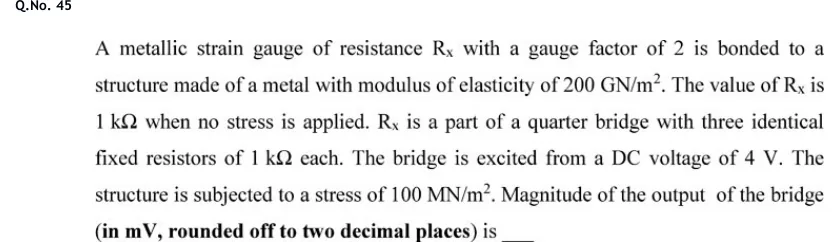

See the question in the paper

Tap to open full size

Answer and solution

ANSWER

The magnitude of the bridge output is about 1.00 mV (0.9995 mV exactly, quarter bridge, 4 V excitation).

Official answer: 0.95 to 1.05Source: Official answer key, GATE 2020 IN (IIT Delhi)

Strain from Hooke's law: $ε = \frac{σ}{E} = \frac{100 \times 1 0 ^{6} N/m ^{2}}{200 \times 1 0 ^{9} N/m ^{2}} = 5 \times 1 0^{- 4}$ .
Gauge factor $G = \frac{Δ R / R}{ε}$ , so $\frac{Δ R}{R} = 2 \times 5 \times 1 0^{- 4} = 1 \times 1 0^{- 3}$ . With $R_{x} = 1 k Ω$ this gives $Δ R = 1 Ω$ .
Quarter bridge: the strain gauge $R_{x}$ sits in one arm and the other three arms are fixed $R = 1 k Ω$ resistors. The output is the difference of the two divider voltages: $V_{o} = V [\frac{R + Δ R}{2 R + Δ R} - \frac{1}{2}] = V \frac{Δ R}{2 ( 2 R + Δ R )}$
Substitute $V = 4 V$ , $R = 1000 Ω$ , $Δ R = 1 Ω$ : $V_{o} = 4 \times \frac{1}{2 \times 2001} = 0.9995 \times 1 0^{- 3} V = 0.9995 mV$
Check with the small-change form for a quarter bridge: $V_{o} \approx \frac{V}{4} \frac{Δ R}{R} = \frac{4}{4} \times 1 0^{- 3} V = 1 mV$ , which agrees.
Rounded to two decimal places, the magnitude of the output is $1.00 mV$ .

KEY IDEA

Convert stress to strain with Hooke's law, strain to $Δ R / R$ with the gauge factor, then use the quarter-bridge output $V_{o} \approx \frac{V}{4} \frac{Δ R}{R}$ (exact form $V \frac{Δ R}{2 ( 2 R + Δ R )}$ ).

WATCH OUT FOR

Using the half-bridge or full-bridge factor (V/2 or V instead of V/4) for a quarter bridge, or mixing units so that GN/m^2 and MN/m^2 are off by a factor of 1000 in the strain.
