GATE 2025 CS1 Q.54: solution and answer

GATE 2025 · CS1Q.54 · 2 marks · NAT

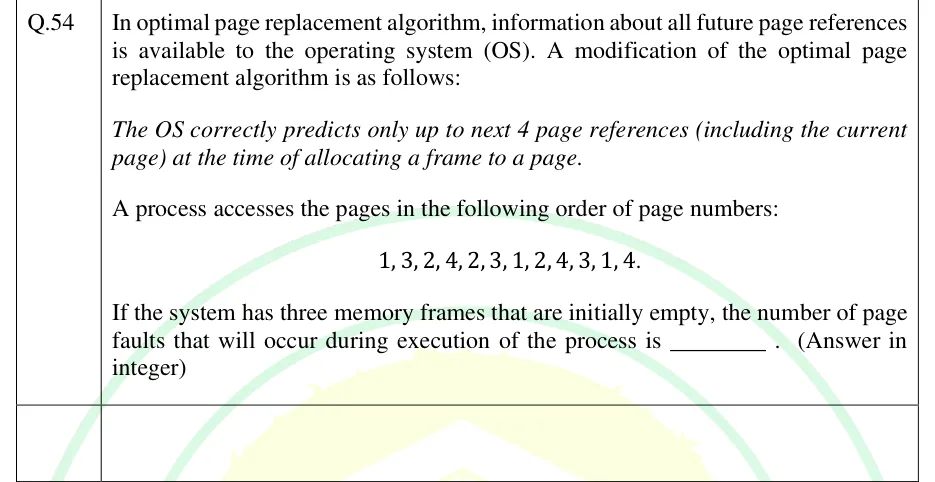

In optimal page replacement algorithm, information about all future page references is available to the operating system (OS). A modification of the optimal page replacement algorithm is as follows:

The OS correctly predicts only up to next 4 page references (including the current page) at the time of allocating a frame to a page.

A process accesses the pages in the following order of page numbers: 1, 3, 2, 4, 2, 3, 1, 2, 4, 3, 1, 4.

If the system has three memory frames that are initially empty, the number of page faults that will occur during execution of the process is ________. (Answer in integer)

See the question in the paper

Tap to open full size

Answer and solution

ANSWER

The process incurs 6 page faults.

Official answer: 6Source: Official answer key, GATE 2025 CS1 (IIT Roorkee)

Number the references $1, 3, 2, 4, 2, 3, 1, 2, 4, 3, 1, 4$ as positions $1$ to $12$ . When a fault occurs and all frames are full, look only at the next $4$ references (the current one included). Evict the page whose next use in that window is farthest away, or which does not appear in the window at all.
Positions $1$ , $2$ and $3$ (pages $1, 3, 2$ ) fault into empty frames. That is $3$ faults, and the frames hold ${1, 3, 2}$ .
Position $4$ (page $4$ ) is a fault, making $4$ faults. The window is $4, 2, 3, 1$ , so the resident pages are next used at: page $2$ at position $5$ , page $3$ at position $6$ , page $1$ at position $7$ . Page $1$ is farthest, so evict it. The frames hold ${3, 2, 4}$ .
Positions $5$ and $6$ (pages $2, 3$ ) are hits.
Position $7$ (page $1$ ) is a fault, making $5$ faults. The window is $1, 2, 4, 3$ , so the resident pages are next used at: page $2$ at position $8$ , page $4$ at position $9$ , page $3$ at position $10$ . Page $3$ is farthest, so evict it. The frames hold ${2, 4, 1}$ .
Positions $8$ and $9$ (pages $2, 4$ ) are hits.
Position $10$ (page $3$ ) is a fault, making $6$ faults. Only $3, 1, 4$ remain, so the window is $3, 1, 4$ . Page $2$ does not appear in the window, so evict it. The frames hold ${4, 1, 3}$ .
Positions $11$ and $12$ (pages $1, 4$ ) are hits. The total is $6$ page faults.

KEY IDEA

Simulate optimal replacement with a limited lookahead. On a fault with full frames, evict the page whose next use inside the next 4 references (current included) is farthest, and treat a page absent from that window as farthest of all.

WATCH OUT FOR

Using full future knowledge, as in ordinary optimal replacement, instead of only the 4-reference window. Another slip is forgetting that the window shrinks near the end of the string, and so miscounting which page to evict at position 10.
